Workbook tabs
- Instructions
- Record

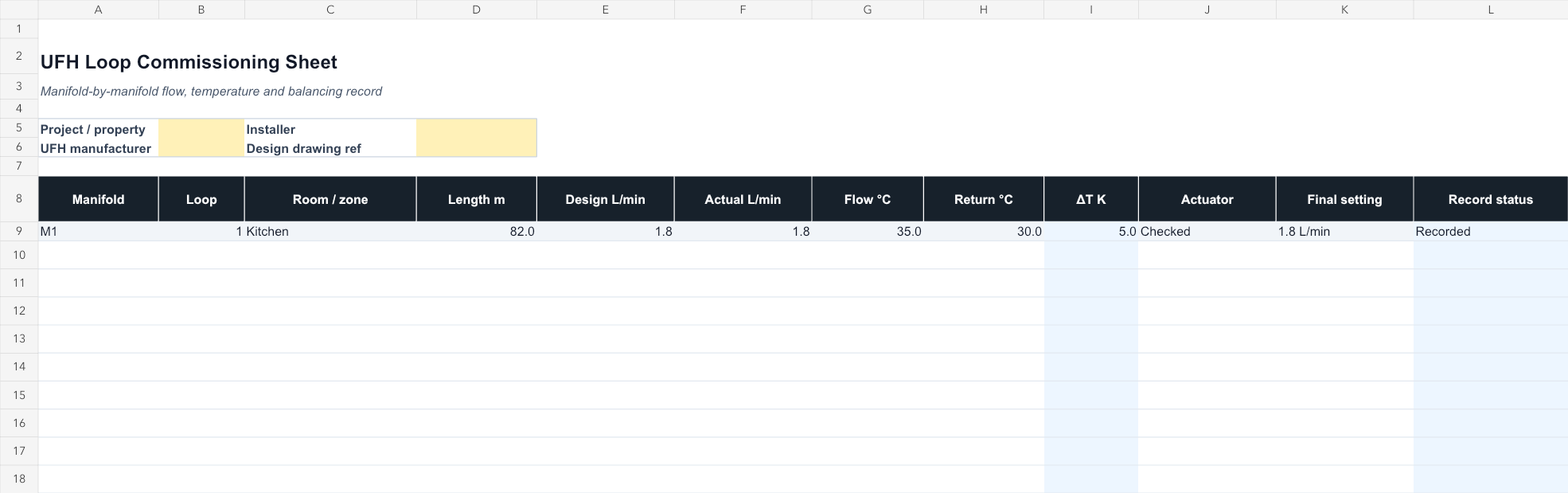

Dashboard preview from the delivered XLSX workbook
Back of pack
What is inside the download
Workbook tabsInstructions + Record
Live capacity40 records
FormatMacro-free XLSX
LicenceOne organisation
Product ID: CMT-JP-005 · Completed example and built-in instructions included.
Heating Records · UK digital download
Underfloor Heating Loop Commissioning Sheet Template
Editable, macro-free Excel workbook with sample data and formula-controlled exceptions
Balance and hand over each circuit with a record that can be read later. The workbook keeps manifold and loop identity beside design flow, actual flow, supply and return temperatures, calculated temperature difference, actuator checks, and final settings.
Best for: UFH installers, Heating engineers, Heat-pump installers, Commissioning and handover teams
£19GBP
One-time payment in GBP · Editable XLSX workbook · No subscription
30-day money-back guaranteeSecure Stripe checkoutInstant download after payment
Secure Stripe Payment Link
Pay in GBP through Stripe. After payment, Stripe sends you directly to the editable XLSX workbook download.
Under 2 minutes to checkout Commercial project use included
This product has a fixed GBP price. Any tax due is calculated by Stripe for the customer location.
Instant XLSX downloadMacro-free workbookNo subscription
The moment you need it
Balance every loop and leave settings the next engineer can understand
The UFH system is filled, vented, and ready to balance. You need to record every loop against its room and design setting before handing the system to the client or heat-source engineer.
Project boundary: Use the approved design flow rates and manufacturer instructions. The workbook calculates ΔT from entered flow and return temperatures but does not decide whether a setting is acceptable.
Underfloor Heating Loop Commissioning Sheet Template
£19
Product specifications
- Product ID / format
- CMT-JP-005 · Editable macro-free XLSX
- Compatibility
- Microsoft Excel, Excel Online, Google Sheets import
- Verified contents
- Instructions, completed example and 40 live record rows
- Delivery and licence
- Direct post-payment workbook download; single-organization project use included
Exact workbook structure
See where every piece of information goes
The delivered file contains two focused tabs: instructions for setup and a working record with one completed example plus 40 blank live rows.
Record fields
Manifold reference
Loop number
Room or zone
Loop length
Design flow rate
Actual flow rate
Flow temperature
Return temperature
Calculated ΔT
Actuator and final setting
Built-in workflow features
- Automatic ΔT from entered flow and return temperatures
- Design and actual flow rates shown side by side
- Incomplete-record prompt for final handover review
Why this is more than a blank checklist
- Manifold-order structure prevents anonymous circuit readings
- Keeps measurements, actuator checks, and final settings together
- Uses approved design values without inventing generic acceptance thresholds
What's Included
- Editable manifold and loop schedule
- Design-versus-actual flow-rate fields
- Flow and return temperature record
- Automatic ΔT calculation
- Actuator checks and final settings
- Automatic record-completeness prompt
Compatible With
- Microsoft Excel
- Excel Online
- Google Sheets import
How to Use
Review the included instructions and project criteria before replacing the clearly labelled sample data.
- 1Download the XLSX workbook after Stripe confirms payment.
- 2Save the original, then create a separate copy for the project or property.
- 3Read the Instructions sheet and complete the project-identification fields.
- 4Replace the grey example with the first live record.
- 5Complete each record as the work proceeds, then save the issued project copy.
Use Cases
UFH installers
Heating engineers
Heat-pump installers
Commissioning and handover teams
Who it is—and is not—for
Built for: UFH installers, Heating engineers, Heat-pump installers, Commissioning and handover teams.
Not for: Designing loop lengths or flow rates, deciding acceptance, or replacing manufacturer commissioning instructions.
Evidence and boundaries
Technical references
These sources explain the record-keeping context behind this product. They do not make the workbook an approved form, and they do not replace the current project specification, manufacturer documents, risk controls, or competent judgement.
Uponor UK
Manufacturer guidance covering loop balancing and commissioning; the project design and installed system govern final settings.
References reviewed for this page on 13 September 2026.
FAQs
Licence: The editable workbook is licensed for internal project use by one purchasing organization. Redistribution, resale and source sharing with another organization are prohibited.
Refunds: 30-day money-back guarantee on all purchases. If the workbook is materially not as described or you are not satisfied, contact us within 30 days. Refund Policy
This workbook organizes project records. It does not provide engineering, legal, safety or code-compliance advice and does not replace qualified review or sign-off.
Related Products
Best first productHeating RecordsExcel workbook

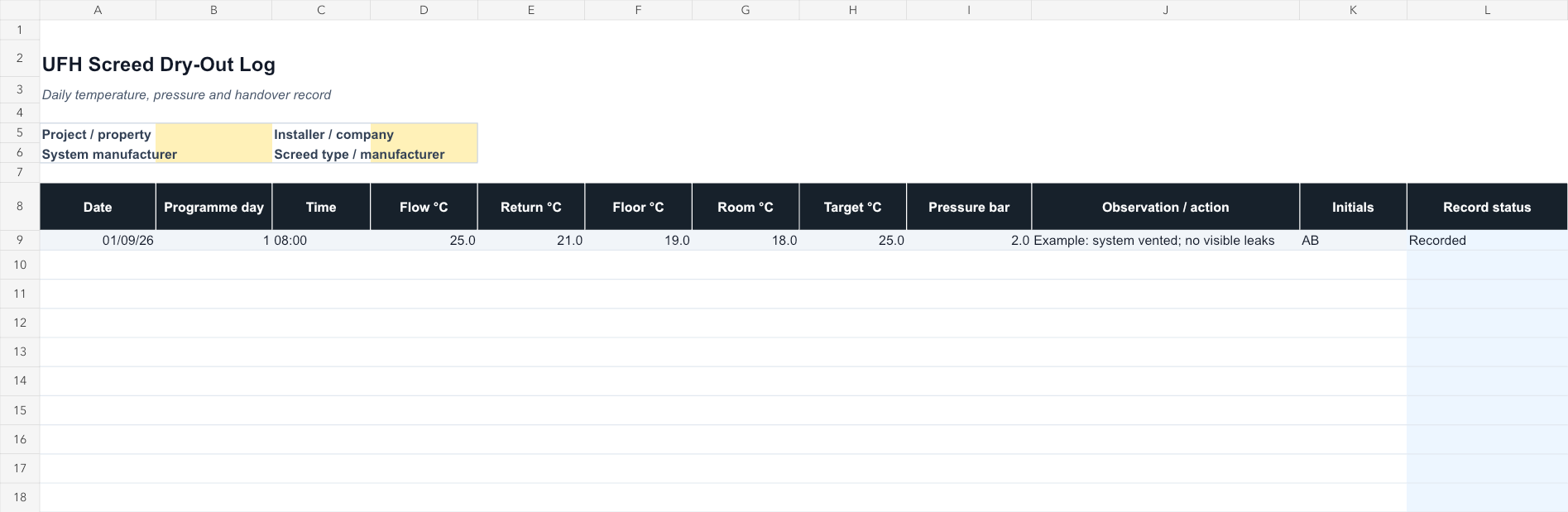

Underfloor Heating Screed Dry-Out Log Template
Editable Excel log for recording the UFH screed warm-up programme, daily temperatures, pressure, observations, and installer initials.
Best for: Underfloor-heating installers, Screed contractors, Heat-pump installers, Flooring contractors checking handover evidence
Editable Excel system · 40 record rows
£19GBP
View detailsInstant XLSX download · No subscription
Heat Pump RecordsExcel workbook

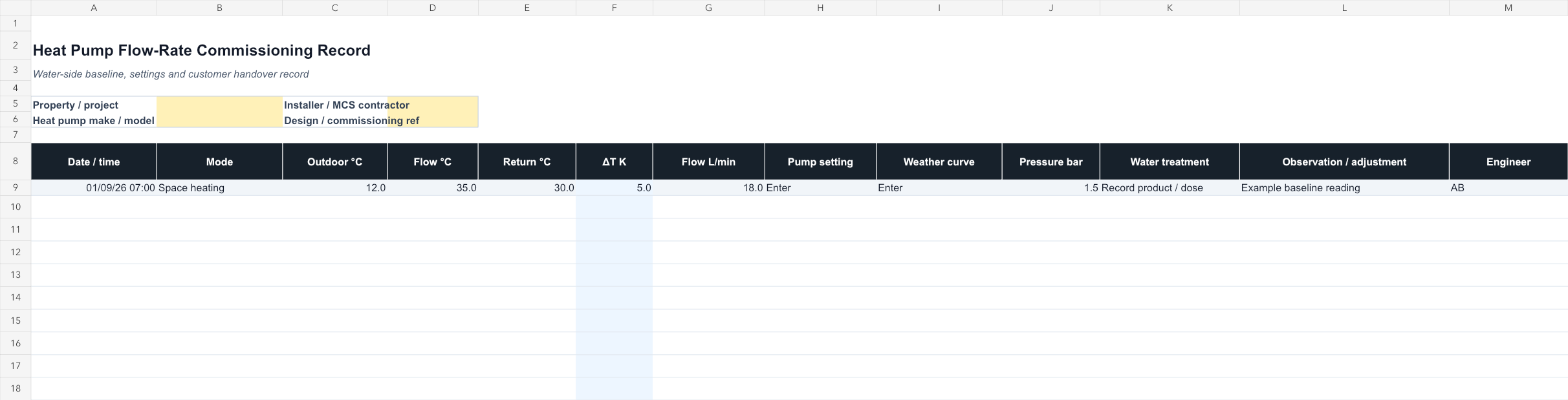

Heat Pump Flow-Rate Commissioning Record Template
